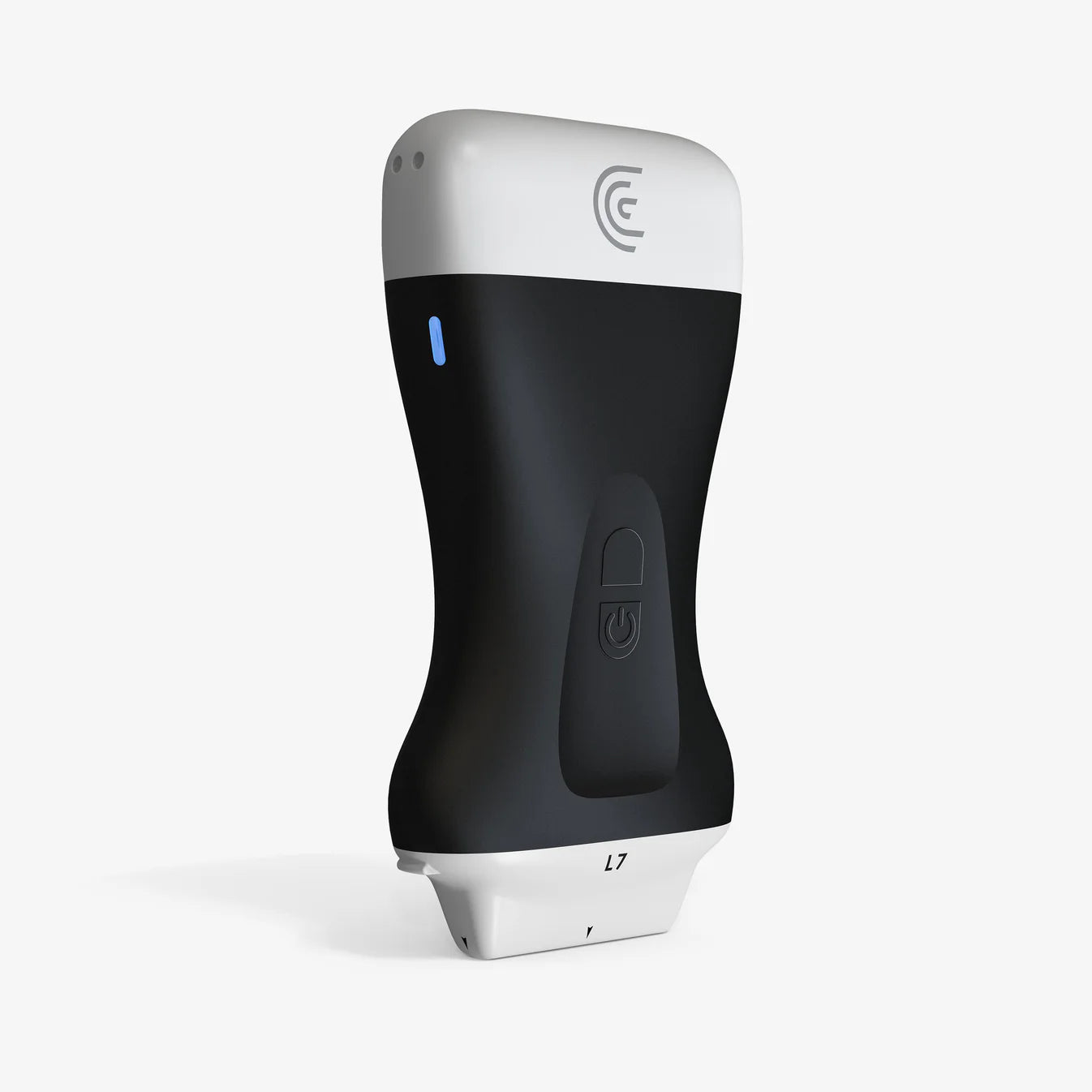

L7 HD3: Linear Scanner
High-definition imaging designed for surgery and musculoskeletal care. Visualize soft tissue, vessels, and nerves to guide procedures, evaluate injuries, and support confident pre- and post-operative care.
Ingår i ditt Clarius-medlemskap:
- Specialiserad programvara
- On-demand utbildningsinnehåll
- Clarius Intelligence
- Obegränsad användaråtkomst
- Obegränsad molnlagring
- Röststyrning
- Pulsad våg-Doppler
- Regelbundna uppdateringar
- Och mer därtill!

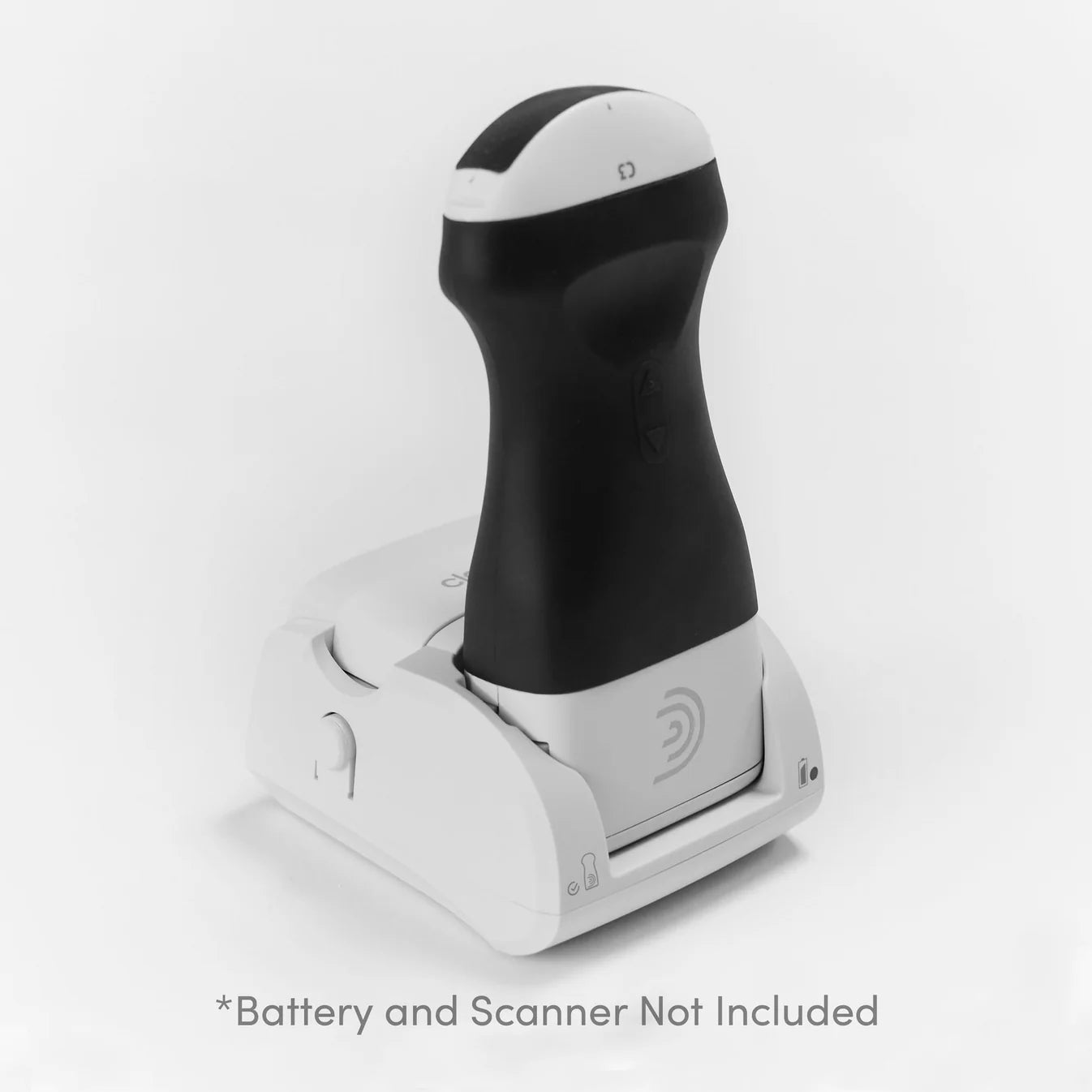

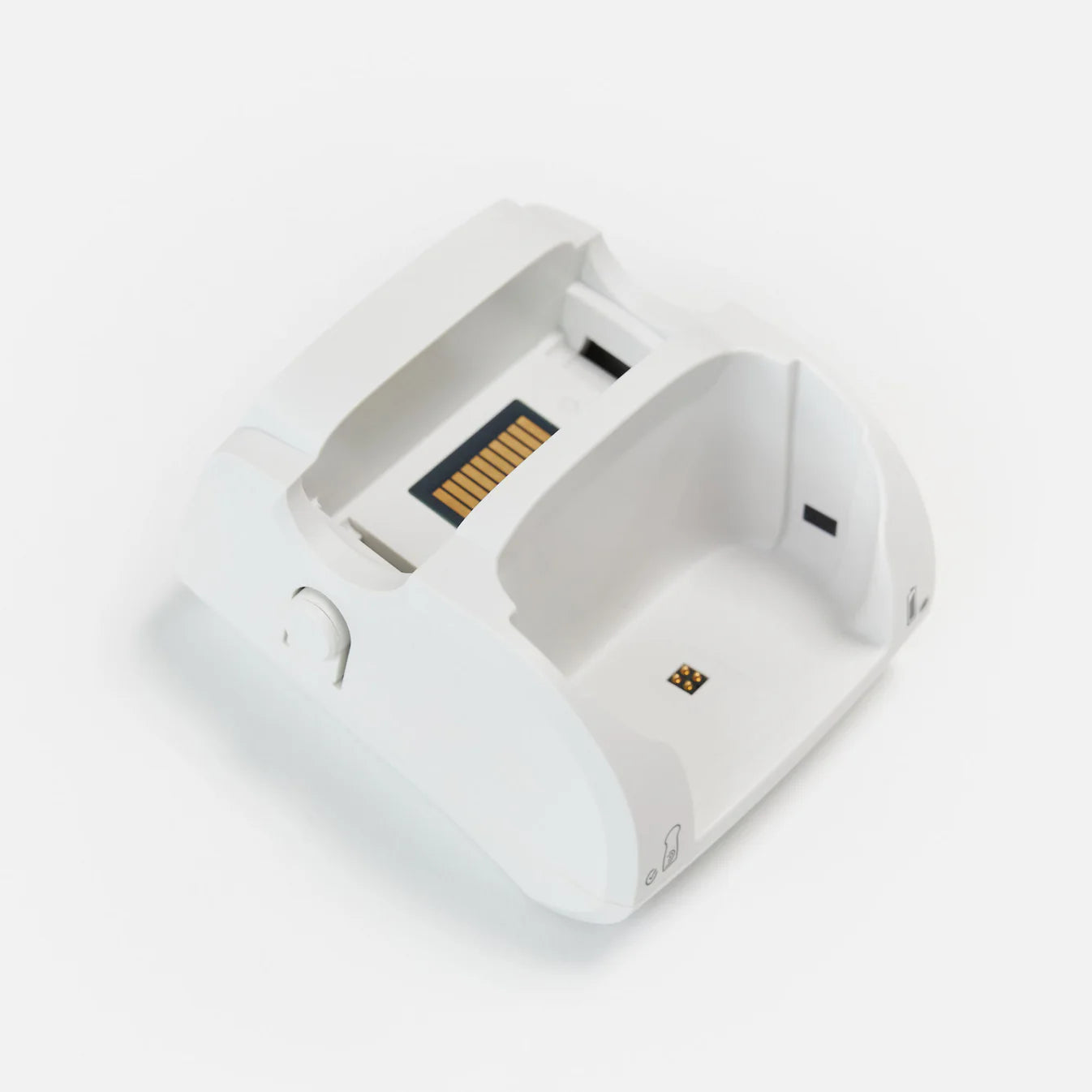

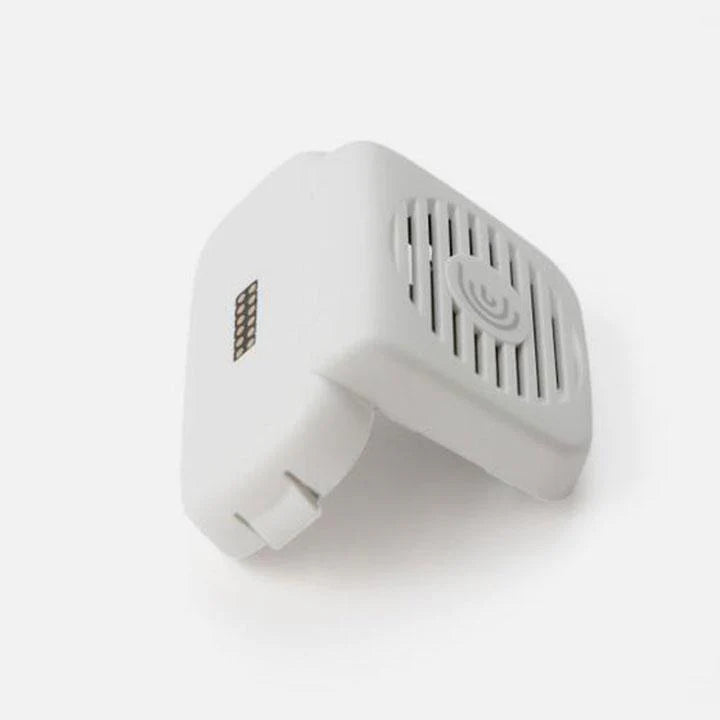

Lägg till tillbehör till din scanner
Frequency: 4-13 MHz
Max Depth: 15 cm
Ideal For: MSK, Surgery
Applications: BBL, Breast (Diagnostic/Interventional), Foot/Ankle, Elbow, Hip & Thigh, Hip Joint, Knee, Plantar, Shoulder, Spine, Hand/Wrist, Plastic Surgery, Nerve/Pain, Vascular
iOS 16+
Android 13+
Wi-Fi 802.11n (5 GHz)
Bluetooth Low Energy 4.0+
*ChromeOS stöds inte
Wi-Fi-datakanal: TLS 1.2
Bluetooth: AES128 och RSA4096
Lokal lagring: Ja (med medlemskap)
Molnlagring: Ja (med medlemskap)
DICOM: Ja (med medlemskap)
PHI-borttagning: Ja
PHI-lagring: HIPAA-kompatibel"
Skanningstid: ~60 min
Laddningstid: ~90 min
Standby: ~7 dagar
Uppstart: plattformsberoende, vanligtvis < 30 sekunder
Dimensions: 147 x 76 x 32 mm (5.8 x 3.0 x 1.3in)
Field of View: 38 mm
Weight: 288g (0.63lb)
Programmable Button: 2
Omgivningstemperatur: 0–40 °C
Relativ luftfuktighet: 15–90 %
Rekommenderad maximal undersökningstid: 20 minuter
Dataexport: trådlöst 802.11abgn, Bluetooth, DICOM, moln
Bildformat: JPEG, PNG, BMP, DICOM
Videoformat: DICOM, MP4"
Cine loop-uppspelning: 30 sekunder
B-Mode, M-Mode, Color/Power Doppler, Pulsed Wave Doppler, Needle Enhance, Split Mode, Elastography
Voice Controls, T-Mode™ (Thyroid, Anterior Knee, Rotator Cuff, BBL, Breast and Abdominal Wall) MSK AI*, Median Nerve AI*
*Available in approved regions
